在現代化工業體系中，直線導軌與滾珠絲杠作為核心傳動組件，共同構建起高精度機械運動的基石。兩者雖功能各異，卻在數控機床、自動化設備、半導體制造等領域形成互補關系，推動著精密加工技術的持續突破。

　　In the modern industrial system, linear guides and ball screws serve as the core transmission components, jointly building the cornerstone of high-precision mechanical motion. Although the two have different functions, they complement each other in fields such as CNC machine tools, automation equipment, and semiconductor manufacturing, driving continuous breakthroughs in precision machining technology.

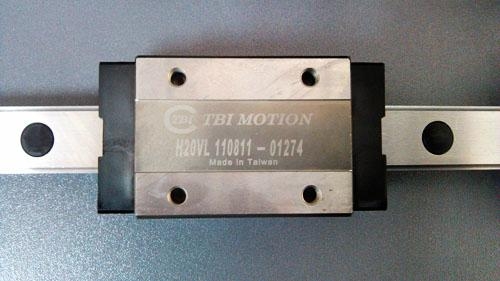

　　直線導軌系統通過滾動體實現運動部件的合理導向。其核心結構包含導軌、滑塊、滾動體及保持架，采用四列式圓弧溝槽設計，使鋼球或滾柱與導軌形成兩點接觸。這種設計不僅承受上下左右四方向負荷，更通過滾動摩擦將摩擦系數降低至傳統滑動導軌的1/50。以德國某品牌直線導軌為例，其HG系列通過優化溝槽形狀，使滾動體接觸面積提升30%，顯著增強了系統剛性。在自動化焊接設備中，直線導軌支撐焊槍實現±0.005mm的重復定位精度，確保焊縫軌跡的巧妙呈現。

　　The linear guide system achieves precise guidance of moving parts through rolling elements. Its core structure includes guide rails, sliders, rolling elements, and retainers. It adopts a four column circular arc groove design, allowing steel balls or rollers to form two-point contact with the guide rails. This design not only withstands loads in all directions, but also reduces the friction coefficient to 1/50 of traditional sliding guides through rolling friction. Taking a certain brand of linear guide rail in Germany as an example, the HG series optimizes the groove shape to increase the contact area of the rolling elements by 30%, significantly enhancing the system rigidity. In automated welding equipment, the linear guide rail supports the welding gun to achieve a repeat positioning accuracy of ± 0.005mm, ensuring the perfect presentation of the weld trajectory.

　　滾珠絲杠則專注于旋轉運動與直線運動的能量轉換。其工作原理是在絲杠與螺母的螺旋滾道內填充滾珠，通過回程裝置形成閉合循環路徑。當絲杠旋轉時，滾珠的滾動運動將扭矩轉化為軸向推力。某型號C3級滾珠絲杠在數控機床進給系統中，可實現0.001mm的非常小進給量，且反向間隙控制在0.003mm以內。這種特性使其在坐標鏜床、磨床等精密加工領域占據主要地位，某航空零件加工中心通過采用預壓滾珠絲杠，將孔系加工精度提升至IT5級。

　　Ball screws focus on the energy conversion between rotational and linear motion. Its working principle is to fill the spiral raceway of the screw and nut with balls, and form a closed loop path through the return device. When the screw rotates, the rolling motion of the ball converts torque into axial thrust. A certain model of C3 grade ball screw can achieve a minimum feed rate of 0.001mm in the feed system of CNC machine tools, and the reverse clearance is controlled within 0.003mm. This characteristic makes it dominant in precision machining fields such as coordinate boring machines and grinders. A certain aviation parts machining center has improved the machining accuracy of hole systems to IT5 level by using pre pressed ball screws.

　　兩者在性能維度形成鮮明對比：直線導軌的優勢在于多軸聯動能力與負載均衡，其模塊化設計允許通過增減滑塊數量應對不同工況；滾珠絲杠則以傳動效率見長，某研究顯示其機械效率可達92%，較梯形絲杠提升近40%。在壽命表現上，直線導軌因滾動體與導軌非直接接觸，理論壽命可達5萬公里以上；而滾珠絲杠通過雙螺母預緊技術，有效延緩了軸向間隙的產生。

　　The two form a sharp contrast in terms of performance: the advantage of linear guides lies in their multi axis linkage capability and load balancing, and their modular design allows for different working conditions to be addressed by increasing or decreasing the number of sliders; Ball screws are known for their transmission efficiency, with a study showing that their mechanical efficiency can reach 92%, which is nearly 40% higher than trapezoidal screws. In terms of lifespan, linear guides have a theoretical lifespan of over 50000 kilometers due to the non direct contact between the rolling elements and the guide rails; The ball screw effectively delays the generation of axial clearance through double nut pre tightening technology.

　　應用場景的差異更凸顯協同效應。在五軸聯動加工中心中，直線導軌支撐工作臺實現X/Y平面運動，滾珠絲杠則驅動Z軸主軸箱完成垂直進給，兩者配合實現復雜曲面的精密加工。半導體制造領域的晶圓檢測設備，同時采用真空兼容型直線導軌與陶瓷滾珠絲杠，在潔凈室環境中達成納米級定位精度。

　　The differences in application scenarios highlight the synergistic effects. In the five axis linkage machining center, the linear guide supports the worktable to achieve X/Y plane motion, while the ball screw drives the Z-axis spindle box to complete vertical feed. The two work together to achieve precision machining of complex surfaces. The wafer inspection equipment in the semiconductor manufacturing field adopts vacuum compatible linear guides and ceramic ball screws to achieve nanometer level positioning accuracy in clean room environments.

　　當前技術發展呈現結合趨勢：某企業開發的智能導軌系統，集成壓力傳感器與溫度補償模塊，通過物聯網實時監測導軌狀態；而滾珠絲杠的空心冷卻技術，有效解決了高速運轉時的熱變形問題。這些創新使兩者在高速加工中心的應用中，主軸轉速突破3萬轉/分鐘的同時，仍能保持0.01mm以內的加工精度。

　　The current technological development is showing a trend of integration: an intelligent guide rail system developed by a certain enterprise integrates pressure sensors and temperature compensation modules, and monitors the status of the guide rail in real time through the Internet of Things; The hollow cooling technology of ball screws effectively solves the problem of thermal deformation during high-speed operation. These innovations enable both to maintain machining accuracy within 0.01mm while the spindle speed exceeds 30000 revolutions per minute in the application of high-speed machining centers.

　　直線導軌與滾珠絲杠作為精密傳動領域的雙核驅動，正在通過材料科學、智能控制、制造工藝的協同創新，持續拓展工業自動化的技術邊界。從數控機床到人形機器人，從3C電子到航空航天，這對黃金組合將繼續支撐著現代制造業向更精密、更智能的方向演進。

　　Linear guides and ball screws, as dual core drives in the field of precision transmission, are continuously expanding the technological boundaries of industrial automation through collaborative innovation in materials science, intelligent control, and manufacturing processes. From CNC machine tools to humanoid robots, from 3C electronics to aerospace, this golden combination will continue to support the evolution of modern manufacturing towards greater precision and intelligence.
